DIGITUS 1D & 2D Desktop USB Barcode Scanner

Availability : In Stock (1)

Quick Overview

DIGITUS 2D Desktop USB Barcode Scanner

Be the first to review this product


Product Description

1D 2D Barcode Scanner Desktop

Omni-directional bar code scanner with a scanning performance of up to 200 scans/s and elegant design for reliable use in checkout areas of pharmacies, supermarkets and other retail facilities

  • Precise scanning of high-resolution 1D & 2D barcodes (barcodes / QR codes)
  • 200 scans per sec., bidirectional for reliable recognition, successful code recognition is confirmed by a light and audio signal.
  • Reads barcodes on screens – ideal for payment via smartphone / QR code (e.g. e-wallet).
  • Ideal for retail, logistics and business of all kinds
  • Anti Inference: External light sources have no influence on the scan.
  • Integrated infrared sensor automatically activates the scanner when a barcode is held in the scanning area.
  • Compact design with swiveling head, creates space on the cashier’s desk

The 2D barcode scanner from DIGITUS® with high-resolution and motion-independent CMOS sensor allows fast and accurate scanning of static and non-static barcodes. Suitable for checkout areas in pharmacies, supermarkets and other retail facilities. Detects printed QR codes and QR codes displayed on screens (e.g. e-wallet). With 200 scans per sec., this bidirectional scanner delivers the best results. Suitable for one and omni-dimensional barcodes such as bar codes and QR codes. The scanner is also capable of reading QR codes from displays, ideal for scanning QR codes for mobile pay. Each scan is confirmed with visual and audible signals, supporting the most common types of encodings. Large scan angles further accelerate barcode recognition.


  • 2D & 1D Scan – Barcodes & QR codes on paper or displays
  • Power consumption: 5V DC, 235mA
  • Power supply: USB

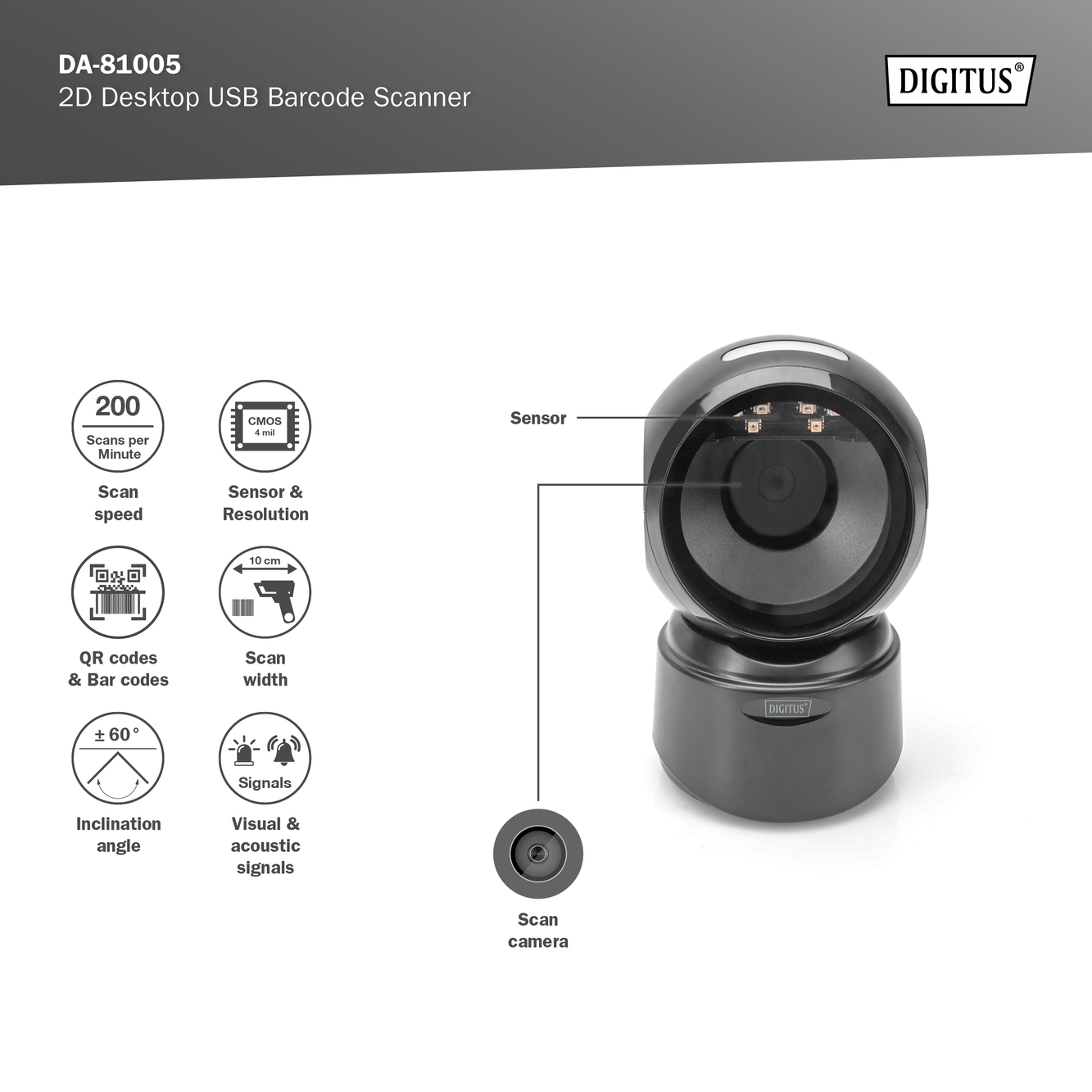

  • Scan type: Image capture
  • Sensor: CMOS
  • CPU: ARM 32-Bit Cortex
  • Interface: USB
  • Trigger: automatic
  • Error rate in bits: 1/5 million, 1/20 million
  • Resolution: 1D: ≥4mil, 2D:≥ 10mil
  • Scan width: 10 cm
  • Number of scans: 200 per sec.
  • Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm – 600 mm; 35 mil @ 10 mm-1000 mm

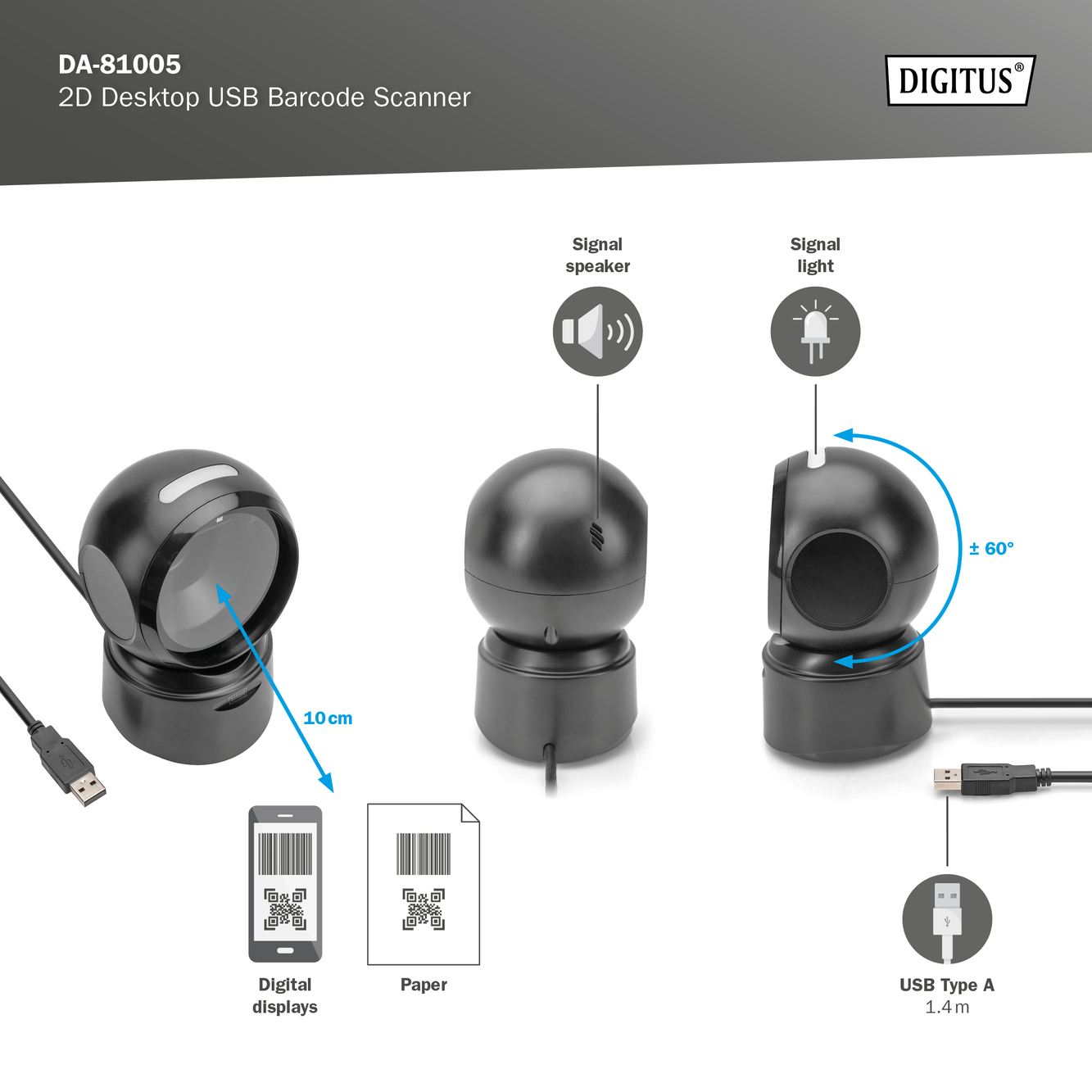

  • Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
  • Decoding: 1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight, 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omn
  • Decoding 2-D: DOT Code, Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN
  • Compatible with Windows / Android / iOS / Mac / Linux
